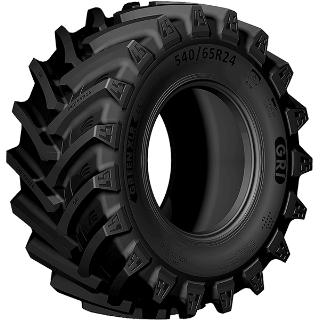

The image above represents the tread design only. Actual proportions may vary.
Tyre does not include a rim or any other accessories unless otherwise stated.
480/65R28 GRI GREEN XLR 65 tubeless tyre
Product Code
P17112
Tyre Details
| Tyre Size | 480/65R28 |
|---|---|
| Brand | GRI |
| Pattern | GREEN XLR 65 |
| TT/TL | Tubeless |
| Rec. Rim | W 15 L |
| Permitted Rims | W14L |
| Load Index |
142D/145A8 2,650kg at 65 km/h 2,900kg at 40 km/h |
| Tread Depth (mm) | 47 mm |
| Availability |
Unconfirmed.
|
Dimensions
| Diameter | 1335 mm |
|---|---|
| Width | 479 mm |
| Rolling Circ. | 4058 mm |
| Static Load Radius | 610 mm |
| Weight | 103.4 kg |
| Rev per km | 246 |
Dimensions are provided based on the manufacturer specifications.
Downloads
GRI Tyres Databook
Get a quote
This tyre is not available for online ordering.
Please contact us for our best price.
Please contact us for our best price.
Load Capacity
| Pressure (PSI) | 10 km/h | 30 km/h | 40 km/h | 50 km/h | 65 km/h |
|---|---|---|---|---|---|
| 9 PSI | 1,465 kg | 1,395 kg | 1,340 kg | 1,275 kg | |
| 12 PSI | 1,710 kg | 1,625 kg | 1,560 kg | 1,485 kg | |
| 15 PSI | 1,925 kg | 1,830 kg | 1,755 kg | 1,670 kg | |
| 17 PSI | 2,135 kg | 2,030 kg | 1,950 kg | 1,855 kg | |
| 20 PSI | 2,350 kg | 2,235 kg | 2,145 kg | 2,045 kg | |
| 23 PSI | 2,535 kg | 2,410 kg | 2,315 kg | 2,200 kg | |
| 29 PSI | 2,810 kg | 2,670 kg | 2,565 kg | 2,440 kg | |
| 35 PSI | 3,050 kg | 2,900 kg | 2,785 kg | 2,650 kg | |
| 9 PSI | 1,465 kg | ||||
| 12 PSI | 1,710 kg | ||||
| 15 PSI | 1,925 kg | ||||
| 17 PSI | 2,135 kg | ||||
| 20 PSI | 2,350 kg | ||||
| 23 PSI | 2,535 kg | ||||
| 29 PSI | 2,810 kg | ||||
| 35 PSI | 3,050 kg | ||||
| 9 PSI | 1,710 kg | ||||
| 12 PSI | 1,995 kg | ||||
| 15 PSI | 2,240 kg | ||||
| 17 PSI | 2,490 kg | ||||
| 20 PSI | 2,740 kg | ||||
| 23 PSI | 2,955 kg | ||||
| 29 PSI | 3,275 kg | ||||
| 35 PSI | 3,555 kg |
While we do our best to ensure our data is correct, Big Tyre does not guarantee the accuracy of the tyre specifications shown on this page. If this information is critical for your application please refer to the tyre manufacturer's specifications.
