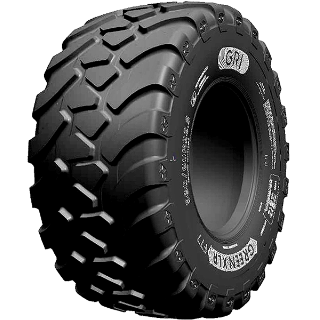

The image above represents the tread design only. Actual proportions may vary.
Tyre does not include a rim or any other accessories unless otherwise stated.
560/60R22.5 GRI GREEN XLR F77 tubeless tyre
Product Code
P17042
A technologically advanced radial flotation tyre for tractors, harvesters, grain carts and farm implements developed to carry heavy loads on demanding terrain conditions. The Multi-directional tread pattern and wide tread width ensure superior flotation suitable for 50/50 ON/OFF road application and provide high traction and stability. The F77’s tyre construction and extended wear compounds ensure enhanced tyre life, higher load-carrying capacity, and improved puncture resistance. Its high center block to lug ratio provides excellent road ability and low soil damage, while the optimum land/sea ratio and dual-angle block-lug improve soil cleaning, traction, and wear.
- High load carrying capacity at a low inflation pressure
- Lug contact at the centerline for a smooth and comfortable run on the road
- Strong nylon casing and special tread compound for high wear resistance
- Reinforced bead offers superior stability
- Low rolling resistance for excellent fuel efficiency
| Tyre Size | 560/60R22.5 |
|---|---|
| Brand | GRI |
| Pattern | GREEN XLR F77 |
| TT/TL | Tubeless |
| Rec. Rim | AG 16.00 |
| Permitted Rims | 16.00 , 17.00 , AG 20 |
| Load Index |
165D/176A8 5,150kg at 65 km/h 7,100kg at 40 km/h |
| Tread Depth (mm) | 23 mm |
Downloads
GRI Tyres Databook
|
Limited stock available
|
Get a quote
$1,485.00
incl GST
Price excl GST:
$1,350
+GST
Specifications
| Overall Diameter | 1244 mm |
|---|---|
| Section Width | 543 mm |
| Rolling Circumference | 3785 mm |
| Static Load Radius | 549 mm |
| Weight | 103.4 kg |
| Rev per km | 264 |
Dimensions are provided based on the manufacturer specifications.
Load Capacity
| Pressure (PSI) | 10 km/h | 25 km/h | 40 km/h | 50 km/h | 65 km/h | 70 km/h |
|---|---|---|---|---|---|---|
| 17 PSI | 3,805 kg | 3,340 kg | 2,875 kg | 2,560 kg | 2,115 kg | 1,925 kg |
| 23 PSI | 4,730 kg | 4,155 kg | 3,575 kg | 3,180 kg | 2,630 kg | 2,395 kg |
| 29 PSI | 5,380 kg | 4,725 kg | 4,065 kg | 3,620 kg | 2,990 kg | 2,725 kg |
| 35 PSI | 6,215 kg | 5,455 kg | 4,695 kg | 4,180 kg | 3,455 kg | 3,145 kg |
| 41 PSI | 7,050 kg | 6,190 kg | 5,325 kg | 4,740 kg | 3,915 kg | 3,565 kg |
| 46 PSI | 7,695 kg | 6,760 kg | 5,815 kg | 5,180 kg | 4,275 kg | 3,895 kg |
| 52 PSI | 8,440 kg | 7,410 kg | 6,375 kg | 5,675 kg | 4,690 kg | 4,270 kg |
| 58 PSI | 9,270 kg | 8,140 kg | 7,005 kg | 6,235 kg | 5,150 kg | 4,690 kg |
