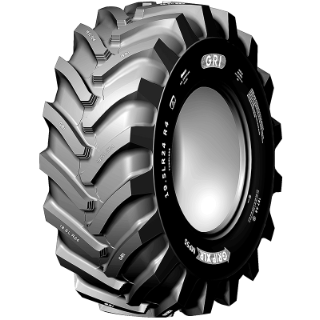

The image above represents the tread design only. Actual proportions may vary.
Tyre does not include a rim or any other accessories unless otherwise stated.
19.5LR24 GRI GRIP XLR MP55 tubeless tyre
Product Code
P17175
Out of Stock
- A radial industrial tyre suitable for backhoe loaders, compact loaders, and telehandlers.
- Special multi-angle lug head for higher productivity
- Strong nylon-cord casing for superior impact and puncture resistance, promising extensive tyre life
- Innovative inner bent lug design for excellent traction and stability
- Cut & abrasion-resistant tread compound for higher strength and runtime
- Higher tread radius, giving a maximum footprint
| Tyre Size | 19.5LR24 |
|---|---|
| Equivalent to | 500/70R24 |
| Brand | GRI |
| Pattern | GRIP XLR MP55 |
| TT/TL | Tubeless |
| Rec. Rim | DW16A |
| Industry Code |
R-4 - Tractor tyre Industrial tractor / Construction, Intermediate LOM tread |
| Load Index |
157A8 4,125kg at 40 km/h |
| Tread Depth (mm) | 43 mm |
Downloads
GRI Tyres Databook
|
Out of stock
|
Get a quote
$2,112.00
incl GST
Price excl GST:
$1,920
+GST
Specifications
| Overall Diameter | 1320 mm |
|---|---|
| Section Width | 495 mm |
| Rolling Circumference | 3835 mm |
| Static Load Radius | 584 mm |
| Weight | 114.7 kg |
| Rev per km | 261 |
Dimensions are provided based on the manufacturer specifications.
Load Capacity
| Pressure (PSI) | 0 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h |
|---|---|---|---|---|---|
| 20 PSI | 2,912 kg | 2,442 kg | 2,330 kg | 2,240 kg | 2,038 kg |
| 23 PSI | 3,250 kg | 2,725 kg | 2,600 kg | 2,500 kg | 2,275 kg |
| 26 PSI | 3,543 kg | 2,970 kg | 2,834 kg | 2,725 kg | 2,480 kg |
| 29 PSI | 3,900 kg | 3,270 kg | 3,120 kg | 3,000 kg | 2,730 kg |
| 32 PSI | 4,095 kg | 3,434 kg | 3,276 kg | 3,150 kg | 2,867 kg |
| 35 PSI | 4,355 kg | 3,652 kg | 3,484 kg | 3,350 kg | 3,049 kg |
| 38 PSI | 4,615 kg | 3,870 kg | 3,692 kg | 3,550 kg | 3,231 kg |
| 41 PSI | 4,875 kg | 4,088 kg | 3,900 kg | 3,750 kg | 3,413 kg |
| 44 PSI | 5,200 kg | 4,360 kg | 4,160 kg | 4,000 kg | 3,640 kg |
While we do our best to ensure our data is correct, Big Tyre does not guarantee the accuracy of the tyre specifications shown on this page. If this information is critical for your application please refer to the tyre manufacturer's specifications.
