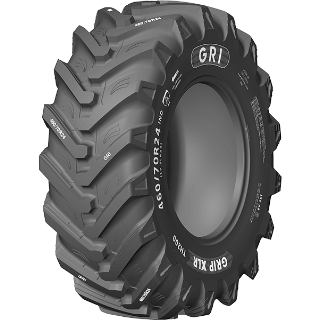

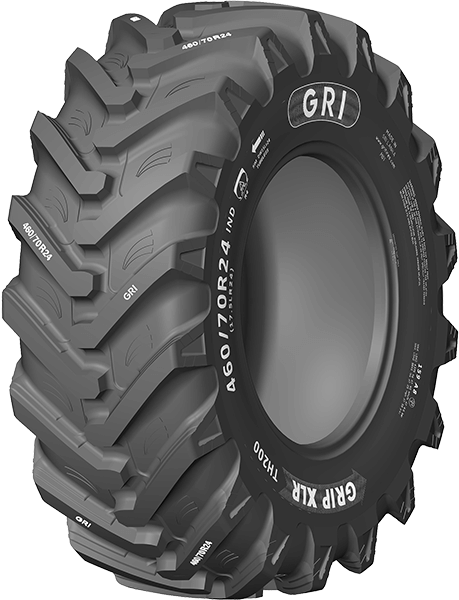

The image above represents the tread design only. Actual proportions may vary.
Tyre does not include a rim or any other accessories unless otherwise stated.
Product Code
P17176
Heavy Duty Telehandler Tyre
Designed for telescopic handlers and loading applications. The special tread compound provides high resistance against wear and cuts, while its multi-angle tread pattern provides excellent traction. Its strong casing provides extraordinary resistance to impacts and shocks in heavy-duty operations, while its unique center tyre bar design ensures better lug stability and support in resisting lug base cracks.
- Innovative steps-shaped lug design and high-density lug configuration for high traction capability and optimized elf-cleaning properties
- Hook-shaped lug head and sturdy tie bar to create a virtual centerline rib and anti-lateral force
- Strong flex sidewall casing and radial construction for the best sidewall flection and maximum footprint
- Special compound for tread and sidewall for cut and chip resistance
Tyre Details
Tyre Size | 460/70R24 |
---|---|
Equivalent to | 17.5LR24 |
Brand | GRI |
Pattern | GRIP XLR TH200 |
Rec. Rim | DW 15 L |
Permitted Rims | DW 14 L |
Load Index |
159A8/B 4,375kg at 40 km/h/50 km/h |
Tread Depth (mm) | 40 mm |
Availability* |
Out of stock
|
Dimensions
Diameter | 1254 mm |
---|---|
Width | 465 mm |
Rolling Circ. | 3766 mm |
Static Load Radius | 568 mm |
Weight | 99.7 kg |
Rev per km | 266 |
Dimensions are provided based on the manufacturer specifications.
Downloads
GRI Tyres DatabookGet a quote
$1,815.00
incl GST
Price excl GST:
$1,650
+GST
While we do our best to ensure our data is correct, Big Tyre does not guarantee the accuracy of the tyre specifications shown on this page. If this information is critical for your application please refer to the tyre manufacturer's specifications.
* Stock availability is provided on a best-effort basis only and is not guaranteed to be up to date. All orders and quotes are subject to availability.
