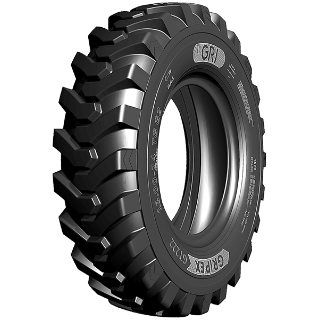

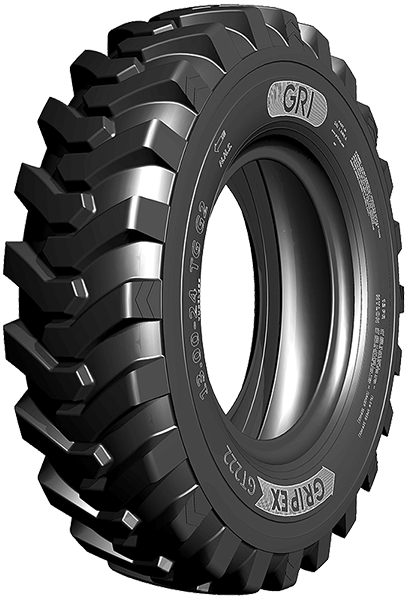

The image above represents the tread design only. Actual proportions may vary.
Tyre does not include a rim or any other accessories unless otherwise stated.
Product Code
P17224
A sturdy and robust tyre for OTR equipment, its strong nylon casing provides extraordinary resistance to impacts and shocks even in heavy-duty operations. The tyre is made of a special tread compound, which provides high resistance against wear and cuts, while the aggressive tread pattern provides excellent traction. Its industry-proven tread pattern provides maximum traction for different types of service in the most severe operating conditions.
- Specially designed for grader machines
- Special tread design for enhancing traction and self-cleaning properties
- Special rubber compound offers better tyre life
Tyre Details
Tyre Size | 13.00-24 |
---|---|
Brand | GRI |
Pattern | GRIP EX GT222 |
TT/TL | Tubeless |
Ply Rating | 12 Ply |
Rec. Rim | 8.00 TG SDC |
Permitted Rims | 9.00/1.5(DC) |
Load Index |
143A8 2,725kg at 40 km/h |
Tread Depth (mm) | 26 mm |
Availability* |
Out of stock
|
Dimensions
Diameter | 1278 mm |
---|---|
Width | 333 mm |
Rolling Circ. | 3785 mm |
Static Load Radius | 582 mm |
Weight | 62.9 kg |
Rev per km | 264 |
Dimensions are provided based on the manufacturer specifications.
Downloads
GRI Tyres DatabookGet a quote
This tyre is not available for online ordering.
Please contact us for our best price.
Please contact us for our best price.
While we do our best to ensure our data is correct, Big Tyre does not guarantee the accuracy of the tyre specifications shown on this page. If this information is critical for your application please refer to the tyre manufacturer's specifications.
