Alliance 224 implement tyre

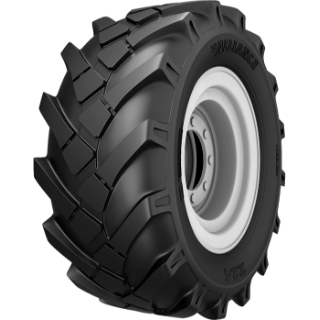

The image above represents the tread design only. Actual proportions may vary. Tyre does not include a rim or any other accessories unless otherwise stated.
Alliance Logo
18-19.5 Alliance 224 16 ply tubeless tyre
Product Code P386

Alliance 224 Construction Machinery tire is a wide base tyre that is designed for cranes, dump trucks and excavators. It provides excellent traction in all working excavators. It provides excellent traction in all working conditions as well as resistance to side slips.

Tyre Details
Tyre Size 18-19.5
Brand Alliance
Pattern 224
TT/TL Tubeless
Ply Rating 16 Ply
Industry Code I-3 - Implement tyre
Drive wheels, Traction - LOM / R-4 tread
Tread Depth (mm) 23 mm
Availability*
Out of stock
Dimensions
Diameter 1080 mm
Width 457 mm
Rolling Circ. 3220 mm
Static Load Radius 495 mm
Weight 72.6 kg
Rev per km 311
Dimensions are provided based on the manufacturer specifications.
Get a quote
$1,419.00 incl GST
Price excl GST: $1,290 +GST
Once we receive your request we will confirm availability, calculate shipping costs and contact you with a quote.
About the manufacturer
Alliance Tyre Group Founded in 1950

Based in Mumbai, India the Alliance Tire Company is a manufacturer of tyres for off the road vehicles. They produce tyres for agricultural, multi-purpose and industrial applications. Their mission is to deliver superior value to the customers of all their products through the lowest total cost of ownership.

While we do our best to ensure our data is correct, Big Tyre does not guarantee the accuracy of the tyre specifications shown on this page. If this information is critical for your application please refer to the tyre manufacturer's specifications.
* Stock availability is provided on a best-effort basis only and is not guaranteed to be up to date. All orders and quotes are subject to availability.
